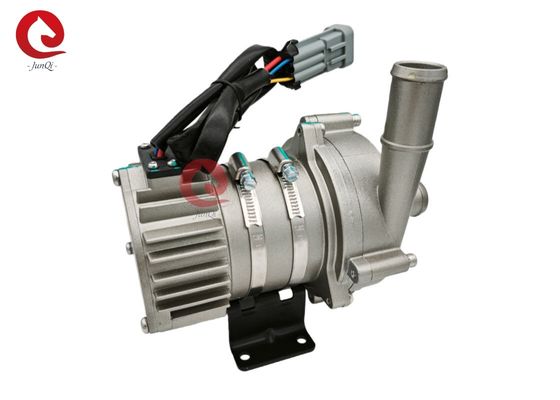

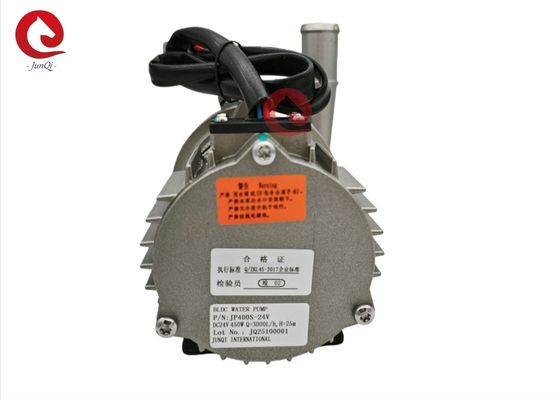

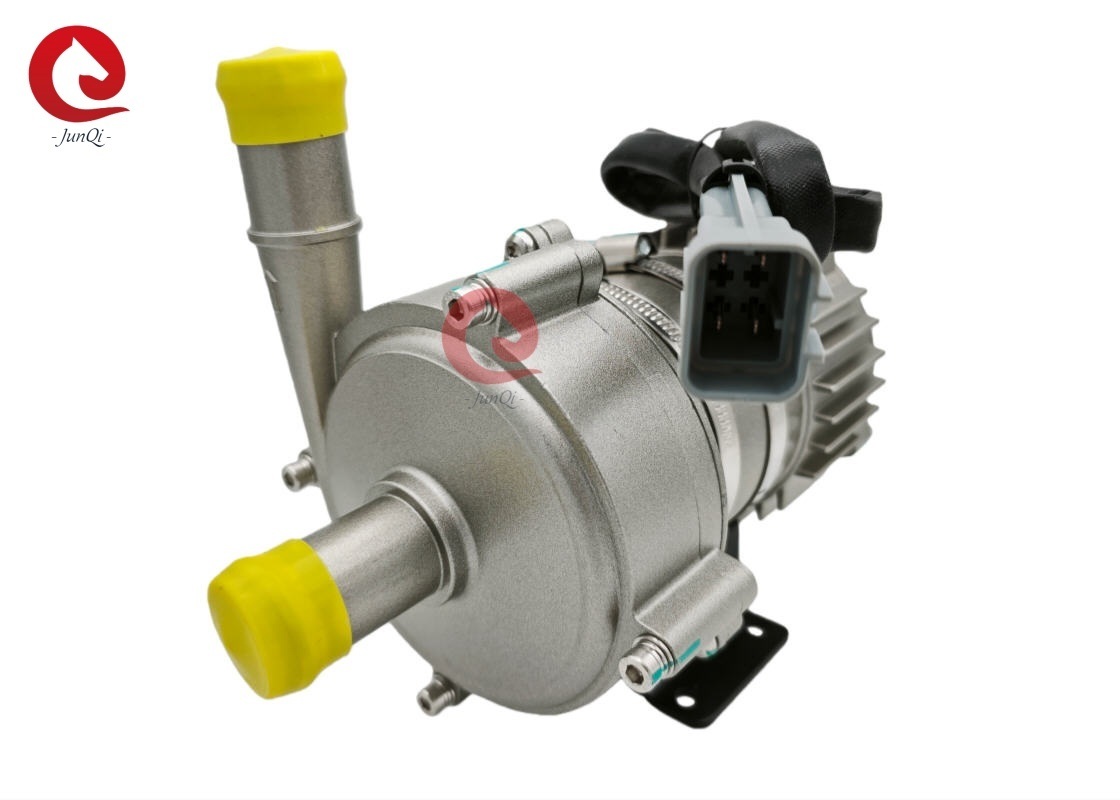

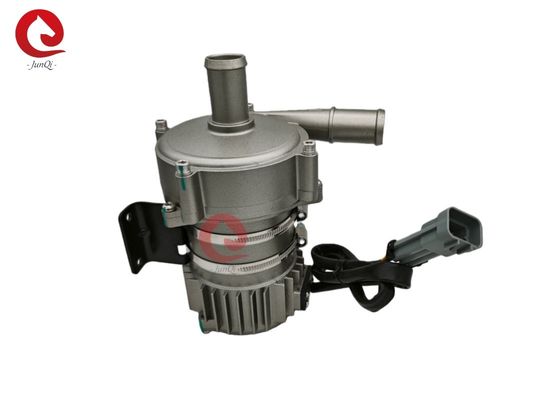

JUNQI 24VDC 450W Brushless DC Water Pump JP400S-24V For Coolant Circulation System
Water Pump features:
♦ Positive and negative electrode misconnection protection function;
♦ Soft start protection, small starting current;
♦ DC brushless motor high reliability, low thermal power, motor efficiency up to 90% energy saving better;
♦ Low noise, long service life.
Technical Parameters:
| JP400S-24V |
| Item |
Description |
| Rated Voltage |
DC24V |
| Rated Currrent |
≤20A |
| Operating voltage |
DC18-32V |
| Rated Power |
450W |
| Working Environment |
-40~85℃ |
| Working Medium |
50% glycol aqueous solution |
| Protection level |
IP68 |
| Working noise |
≤60dB ( Distance 1m) |
| Working life |
≥20000h |
| Weight |
2.8kg |
| Protection function |
Blocked rotation, reverse connection, under voltage, over voltage, over current, over temperature, idling. |
Working Performance curve:
Dimensions:
Application:
Commerical Vehicle Battery Energy Storage Battery Vehicle Thermal Management Data Center
Thermal Management Liquid Thermal Management Liquid System
Cooling Systme Cooling System
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet customized .
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
